How Does an Oil Filter Work? A Step-by-Step Guide

Introduction

An oil filter is an essential part of any vehicle’s engine system. It helps keep the engine clean by removing dirt, debris, and other contaminants from the motor oil. This ensures that the engine runs smoothly and efficiently and prevents damage caused by these particles.

The purpose of an oil filter is to filter out harmful particles that can potentially damage the engine. The filter captures these particles as the oil passes through it, allowing only clean oil to reach the engine. In this way, the filter protects the engine from wear and tear, keeping it in optimal condition.

How an Oil Filter Works Step by Step

Now that we understand the basic function of an oil filter, let’s take a closer look at how it works. Here’s a step-by-step overview of the process:

The Different Parts of an Oil Filter

An oil filter consists of several parts, including a housing, filter media, bypass valve, and check valve. The housing is usually made of metal or plastic and serves as the outer shell of the filter. The filter media is the part that actually does the filtering, trapping particles and contaminants as the oil passes through it. The bypass valve is designed to open when the filter becomes blocked with trapped particles, allowing oil to bypass the filter. The check valve prevents oil from flowing backwards and keeps the oil pressure consistent.

The Filtering Process

As the oil passes through the filter media, the particles are trapped on its surface. As more and more particles get trapped, the filter gradually becomes less effective. This is why it’s important to regularly replace your oil filter. Eventually, the filter will become so clogged that it won’t be able to do its job properly.

Understanding Pressure Drops

The oil filter also helps regulate the flow of oil throughout the engine. As the oil passes through the filter, it experiences a pressure drop. This pressure drop is necessary for proper engine operation. If the pressure drop is too high, it can cause excessive wear and tear on the engine components. Conversely, if the pressure drop is too low, the engine won’t be able to generate enough power.

Benefits of Regular Oil Filter Replacement

Regularly replacing your oil filter has several important benefits. Here are just a few of them:

Improved Engine Performance

A clean oil filter helps keep your engine running smoothly and efficiently. By preventing contaminants from entering the engine, it prevents unnecessary wear and tear on the engine components. This helps ensure that your engine performs optimally for longer.

Enhanced Fuel Economy

Replacing your oil filter helps reduce friction between the engine components. This reduces the amount of energy needed to move the engine, resulting in improved fuel economy. Replacing your oil filter on a regular basis can help you save money on gas in the long run.

Longer Lifespan of Vehicle

By keeping your engine free of contaminants, a clean oil filter helps extend its lifespan. This not only helps you save money on repairs and replacements, but it also allows you to enjoy your vehicle for longer.

Different Types of Oil Filters

There are several different types of oil filters available on the market. The most common types are spin-on filters, cartridge filters, and magnetic filters. Each type has its own advantages and disadvantages, so it’s important to choose the right one for your vehicle.

Spin-on Filters

Spin-on filters are the most common type of oil filter. They are easy to install and replace, making them a popular choice for many vehicles. These filters use a metal or plastic housing and are designed to be screwed onto the engine. They are often used in older vehicles.

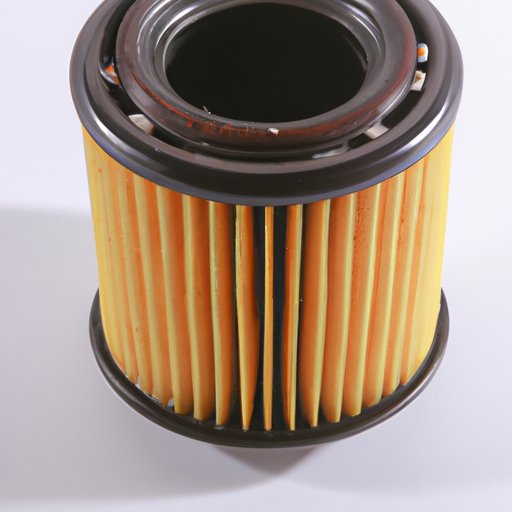

Cartridge Filters

Cartridge filters are another popular type of oil filter. Unlike spin-on filters, they are designed to be inserted into a filter housing. They are more durable than spin-on filters and are often used in newer vehicles. However, they can be more difficult to install and replace.

Magnetic Filters

Magnetic filters are a newer type of filter that uses magnets to attract and trap particles. They offer superior filtration compared to other types of filters and are designed to last longer. They are often used in high-performance engines.

Troubleshooting Common Oil Filter Issues

Even with regular maintenance, oil filters can still experience problems. Here are some of the most common issues and how to troubleshoot them:

Clogged Filters

If your oil filter is clogged, it may need to be replaced. Clogged filters can reduce engine performance and cause it to run hotter. To prevent this, make sure to replace your oil filter on a regular basis.

Leaking Filters

Leaking filters can be caused by a loose connection or a cracked housing. Make sure to check all connections before installing the filter and inspect the housing for any cracks or damage. If the problem persists, you may need to replace the filter.

Worn Out Filters

Over time, oil filters can become worn out and less effective. This can cause poor engine performance and increase the risk of damage. If your filter is worn out, it’s best to replace it as soon as possible.

DIY Guide to Installing an Oil Filter

Installing an oil filter can be done easily with the right tools and knowledge. Here’s a step-by-step guide to help you get started:

Gathering Necessary Tools

Before you begin, make sure to gather the necessary tools. You’ll need a wrench, socket set, oil filter wrench, drain pan, and a new oil filter. Make sure to also have a rag or towel handy in case of any spills.

Preparing the Vehicle

Once you have the necessary tools, you can start preparing the vehicle. Start by parking the vehicle on a flat surface and turning off the engine. Then, locate the oil filter and unscrew the cap. Place the drain pan underneath the filter to catch any oil that may spill out.

Replacing the Oil Filter

Next, use the oil filter wrench to remove the old filter. Once the old filter is removed, use a rag to wipe away any residue from the housing. Then, place the new filter into the housing and tighten it securely with the oil filter wrench.

Finishing Up

Finally, replace the oil filter cap and add fresh oil to the engine. Make sure to follow the manufacturer’s instructions for the correct amount of oil. Once the oil has been added, start the engine and check for any leaks. If everything looks good, you’re all set!

Conclusion

An oil filter is an essential part of any vehicle’s engine system. It helps keep the engine clean by removing dirt, debris, and other contaminants from the motor oil. Understanding how an oil filter works and the benefits of regular maintenance is key to ensuring optimal engine performance.

The different types of oil filters include spin-on filters, cartridge filters, and magnetic filters. Troubleshooting common oil filter issues such as clogged filters, leaking filters, and worn out filters is also important. Finally, a DIY guide to installing an oil filter can help you replace your filter quickly and easily.
