Introduction
Compression fittings are an effective way to join two pieces of pipe together without the need for solder or glue. They’re commonly used in plumbing, automotive, and industrial applications, and they’re easy to install. But how do compression fittings work? In this article, we’ll explore the basics of compression fittings and explain how to install them, as well as the different types available and the common applications for them.
Definition of Compression Fittings

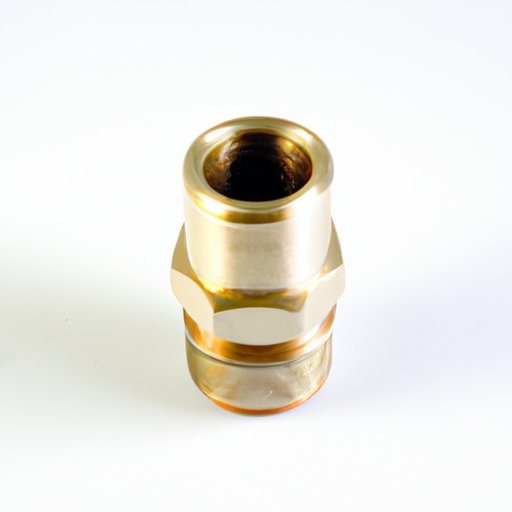

Compression fittings consist of three parts: the compression nut, the compression ring, and the compression seat. The compression nut is a hollow tube made from brass, copper, plastic, or steel that fits over the end of the pipe. The compression ring is a metal or plastic washer that fits around the pipe and against the nut. The compression seat is a ridge inside the nut that creates a seal when the nut is tightened.
Overview of Benefits
Compression fittings offer several advantages over other types of fittings. First, they’re easy to install—you don’t need any special tools or skills. Second, they’re durable and can withstand high temperatures and pressures. Third, they’re relatively inexpensive and widely available. Finally, they provide a secure connection that won’t leak. According to research conducted by the University of Nebraska-Lincoln, “Compression fittings create a strong, reliable joint that will not fail under normal operating conditions.”
Step-by-Step Guide to Installing Compression Fittings
Installing compression fittings is a straightforward process. Here’s a step-by-step guide:
1. Preparing the Pipe
Before you can install the compression fitting, you need to prepare the pipe. Start by cleaning the outside of the pipe with a cloth to remove any dirt or debris. Then cut the pipe to the desired length using a tubing cutter. Once the pipe is cut, deburr the edges with a file or sandpaper to ensure a smooth surface. Finally, slide the compression nut onto the pipe.
2. Inserting the Fitting
Next, insert the fitting into the end of the pipe. Make sure it’s inserted all the way until it reaches the stop inside the nut. Then slide the compression ring onto the pipe.
3. Tightening the Fitting
Once the fitting is in place, use a wrench to tighten the compression nut. Turn it clockwise until it’s tight, but be careful not to overtighten it. If you overtighten the nut, it can damage the pipe or the fitting.
4. Testing for Leaks
Once the nut is tight, turn on the water and check for leaks. If there are no leaks, the fitting is installed correctly. If there are leaks, try tightening the nut a bit more. If the leaks persist, you may need to replace the fitting.
Exploring the Different Types of Compression Fittings
There are several different types of compression fittings available. The most common types are brass, copper, plastic, and steel. Each type has its own set of benefits and drawbacks, so it’s important to choose the right one for your project.
Brass Fittings
Brass compression fittings are the most popular type. They’re durable and corrosion-resistant, and they’re suitable for both hot and cold water systems. However, they’re not recommended for use in high-pressure applications.
Copper Fittings
Copper compression fittings are strong and corrosion-resistant, and they’re suitable for both hot and cold water systems. However, they’re not recommended for use in high-temperature or high-pressure applications.
Plastic Fittings
Plastic compression fittings are lightweight and easy to install, and they’re suitable for cold water systems. However, they’re not recommended for use in hot water systems or high-pressure applications.
Steel Fittings
Steel compression fittings are strong and durable, and they’re suitable for both hot and cold water systems. However, they’re not recommended for use in high-temperature or high-pressure applications.
How to Choose the Right Compression Fitting for Your Project
When choosing a compression fitting for your project, there are several factors to consider. First, you need to make sure the size and type of pipe are compatible with the fitting. Second, you need to consider the temperature range—some fittings are only suitable for cold water systems, while others can handle hot water. Finally, you need to consider the pressure range—some fittings are only suitable for low-pressure applications, while others can handle higher pressures.
Tips for Working with Compression Fittings
Working with compression fittings requires patience and precision. Here are a few tips to keep in mind:
1. Clean the Pipes Beforehand
Before you start installing the fittings, it’s important to clean the pipes. This will help ensure a secure fit and prevent leaks. Use a cloth to remove any dirt or debris from the outside of the pipe.
2. Use the Correct Tools
It’s important to use the correct tools when installing compression fittings. You’ll need a tubing cutter, a file or sandpaper, and a wrench. If you don’t have the right tools, it’s worth investing in them.
3. Don’t Overtighten
Finally, it’s important not to overtighten the compression nut. If you overtighten it, you risk damaging the pipe or the fitting. Instead, tighten it just enough to create a secure connection.
Common Applications for Compression Fittings
Compression fittings are used in a variety of applications. They’re commonly used in plumbing, automotive, and industrial applications. For example, they’re often used to connect pipes in water supply lines, fuel lines, and air conditioning systems.
Troubleshooting Common Problems with Compression Fittings
Despite their durability and reliability, compression fittings can sometimes develop problems. Common issues include leaks, corrosion, and poor fit. To troubleshoot these problems, it’s important to inspect the fittings carefully and make sure they’re installed correctly. If the problem persists, it may be necessary to replace the fitting.
Conclusion
Compression fittings are a great way to join pipes together. They’re easy to install and provide a secure connection that won’t leak. There are several different types of compression fittings available, and it’s important to choose the right one for your project. With the right tools and a bit of patience, you can easily install compression fittings in your home or workplace.
